Standing Wheelchair Features
Under The Hood of Your Power Chair
Six Very Important Numbers for Your Environment
An Overview of Our Wheelchair Features
Unlike our competitors, our system compensates mechanically for body position, so armrests and positioning devices like lateral supports stay with you throughout the whole spectrum of movement. Check out all the benefits that come with a Redman motorized wheelchair.
Wheelchair Features 1 – Bendability
We strive to empower chair users. That's why we built variable bendability of all positions into the Chief 107-ZRx. Whether you want to horizontally align your legs while doing a 45-degree backrest slant, or stretch your torso upward, stopping anywhere between sitting and standing, Redman gets you there. And no matter what position you choose, you can still travel safely.
Wheelchair Features 2 – Flexibility
The Chief 107-ZRx isn't just a standing device, it's a part of who you are and what you do. Our watchword is freedom, and we build it into every detail. Our seat base height is a standard 18 inches, making it easy to get under tables and desks. The arm rests flip away so you can get closer to what you're doing. Best of all, the footprint of our chair is only 23 inches wide and 39 inches long, maneuvering you in and out of tight squeezes with ease.
Wheelchair Features 3 – Stretchability
We believe a power chair should do more. Our chair has the unique capability of allowing you to stretch your lower back, and stretch your heel cords. No other power chair has these capabilities. More stretch equals better health.
Wheelchair Features 4 – Dependability
The new Chief 107-ZRx is not new – it is a continuation of over 15 years of the same design that has improved with customer input. At Redman Power Chair, we focus on one chair and have been for over 15 years. Our latest version of the Chief 107-ZRx is the fruit of user needs and is equipped with generic parts, modular, and a self-diagnosing system which has proven to be very dependable.
Wheelchair Features 5 – Driveability
Redman's Chief 107-ZRx gravity compensation "patent pending" allows you to drive safely even while standing! We recommend only driving while standing in an indoor environment on flat, smooth surfaces. As a safety measure, your Redman chair will automatically adjust to half speed if you drive while in standing positions. Also, it is advisable to stand at a 170 or 190 degree tilt (instead of 180) for best traction.
Our Power Chair Specifications

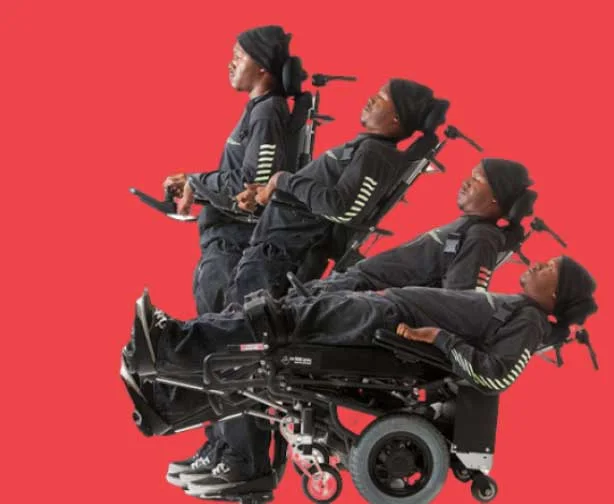

The picture shown is a size 18×18 motorized wheelchair, which is standard to include high leg and angled seat feature at no extra cost.
All custom sized chairs, high leg, and seat angle can be added as an optional feature at an additional cost.
Custom sizing available from 3’8” 40 lbs. to 6’8” 350 lbs.
Features
- Maximum weight limit 250/350 pounds heavy duty construction available
- Seat height 17.5" (to top of seat base front adjustable to 16.6" rear – custom as low as 16")
- Seat depth 18"
- Back height 26" (from seat base), adjustable 5"
- Arm height adjusts from 7" to 11" from seat base to top of arm pad
- Adjustable leg length 13" to 17"
- Ground clearance 3"
- Overall width 23"
- Overall length 39.5"
- 4-wheel suspension & uneven ground compensation
- Turning radius 26"
- Driving range 15-20 miles
- Maximum speed 6.5 MPH standard
- Chair weight: 405 pounds (no accessories, unoccupied)
- Load capacity: 350 pounds (maximum, occupant and accessories)
